AQUAS AquaMax Flex Manual Smart 9.5KW Full Chrome Electric Shower

AQUAS AquaMax Flex Manual Smart 9.5KW Full Chrome Electric Shower

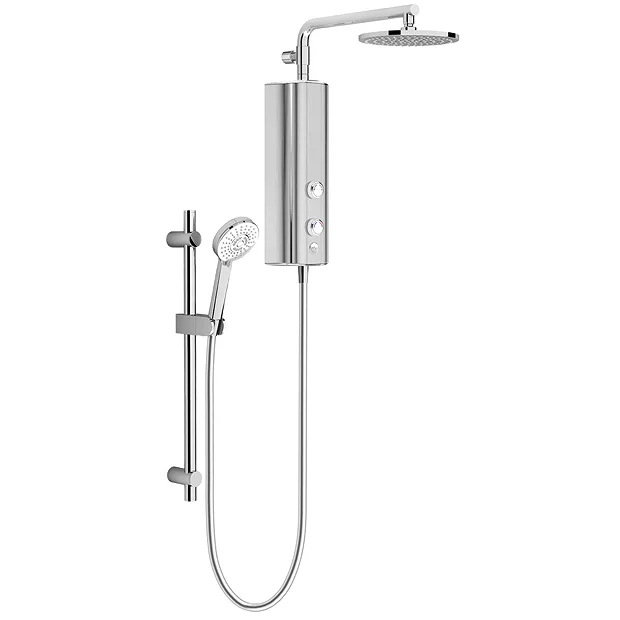

The powerful 9.5KW AQUAS AquaMax Flex Manual Smart Electric Shower comes with an overhead rainfall shower for a drenching. Want a more targeted stream? Switch seamlessly between fixed and handheld showerheads via the simple control unit. Flow limiters ensure a constant stream even during low-pressure fluctuations – you can even adjust the power to 5KW for an eco-friendly flow without compromising on your invigorating shower experience.

Two-Way Divertor
Features a Two-way ceramic divertor to switch between Overhead and Handshower.

Longer Reach
Extra long 400mm+ reach extending the shower head out further from the wall

Latest model now features two power settings for warm and cold seasons:
9.5kw setting for cooler season
ECO 5kw setting for warmer season
Power setting remains in position even after restart of shower for comfort
Before activating 9.5kw setting we recommend turning Volume control to full cold

Product Details

• Range: AQUAMAX
• Name: Top Manual FLEX SMART
• Colour: Chrome Face / Chrome Body
• Handshower:

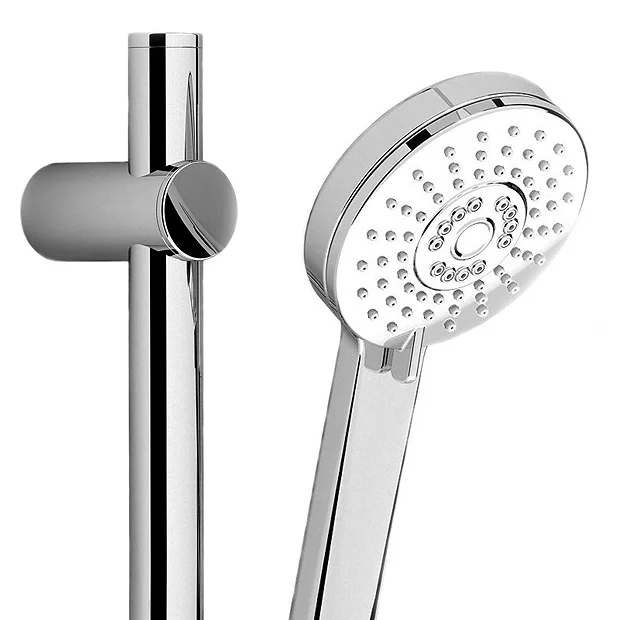

• Handshower 100mm diameter, 3 spray pattern: rain, massage, mixed

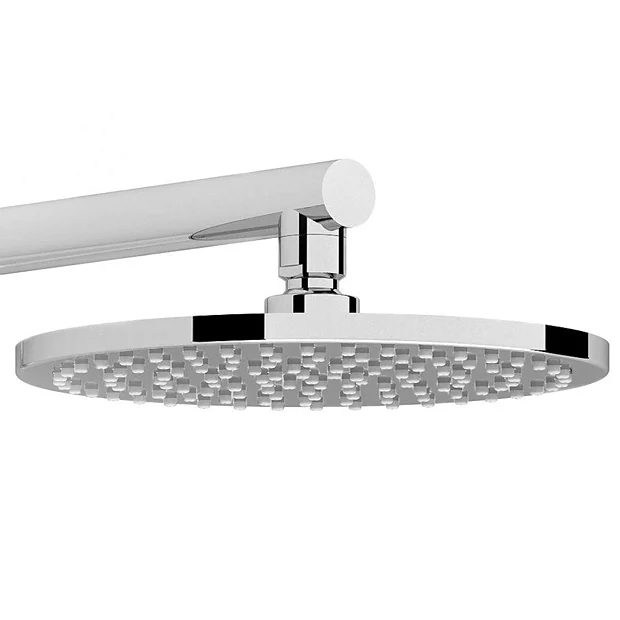

• Overhead shower: SMART 200mm
• Slidebar:
• Rail length 600mm with front load slider
• Distance between rail brackets adjustable
• Smooth silver hose 1,5m 1/2″ x  1/2″ twistfree non conductive
• Shower arm 400mm with free fixation
• Power Rating: 9.5kw
• Minimum Flow required: 1.0 Bar
• Temperature control:
• Electricity leakage safety
• High pressure protection
• Temperature and flow stabilizer
• Advantages:
• Fiber reinforced  Tank – less limescale, extended life, energy efficient, burst resistant

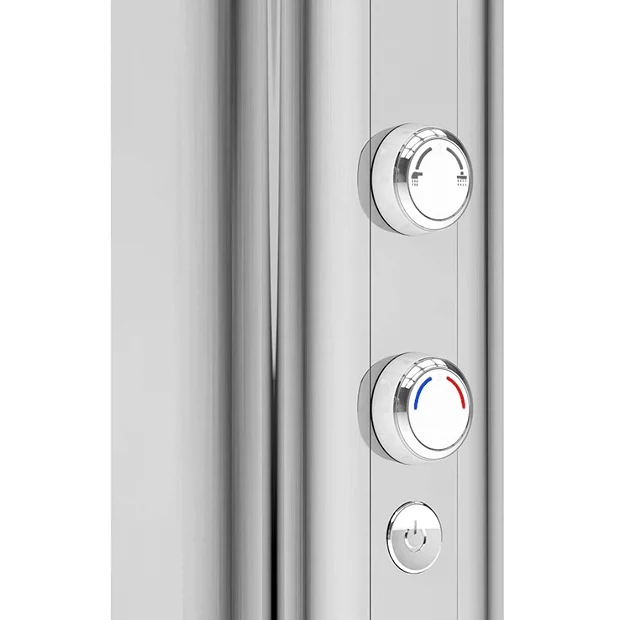

• Controls:
• Start/Stop button
• Easy Grip – temperature control
• Two-way ceramic divertor to switch between Overhead and Handshower
• Installation:
• Electrical connection
• Water entry points right – top, bottom, back
• All indulge and AQUAMAX models have a water connection that is suitable for a “right” only water supply connection.
• The water connection pipe is not reversible.
• Use standard UK plumbing connections – compression – Push fit.
• Cable entry points left hand side – top, bottom, back : right hand side – top, bottom, back
• Outlet connection 1/2″ compression and pushfit 1/2″
• Power Input:
• A Power Input of 240 V and 40 amp circuit breaker is required for max output ( 9.5 KW ) anything less and the heater will not operate at max efficiency
• Min-Max Working Pressure:
• A Min Dynamic flow pressure of 100 K /Pa ( 15 ib / Sq In ) – 1.0 BAR  is required
• A Max Static  pressure of 500 K /Pa ( 75 ib / Sq In ) – 5.0 BAR  should not be exceeded
• Approvals: BEAB, CE; ROHS

Frequently Asked Questions

https://aquasshower.co.uk/en/customer-care/question-and-answers

Images are for illustration purposes only

Warranty: 2 years

Gravity Fed Systems:
This AQUAS shower needs a minimum 1.0 bar of static water pressure feeding the shower, if the shower is being fitted to a gravity fed water tank from the loft (which we do not recommend) it needs to be fitted with a negative or universal head shower pump, this AQUAS shower is meant to have its own independent water feed from the mains.
