Arezzo Brushed Brass Square Concealed Thermostatic 2-Way Shower Valve With Handset

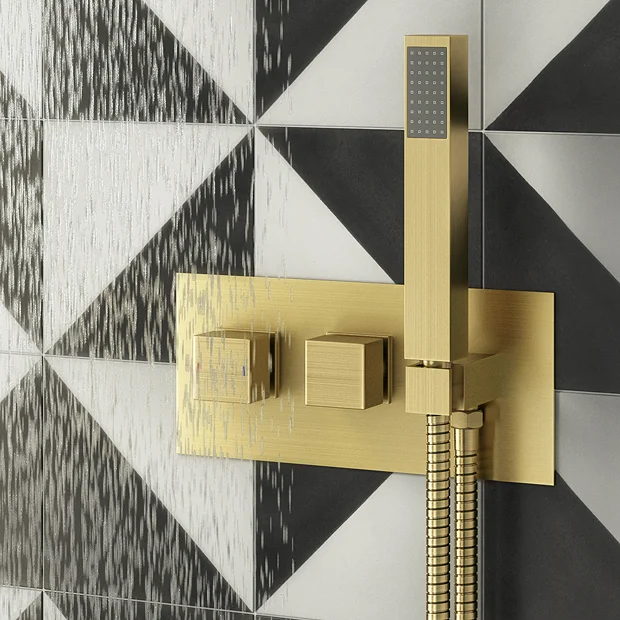

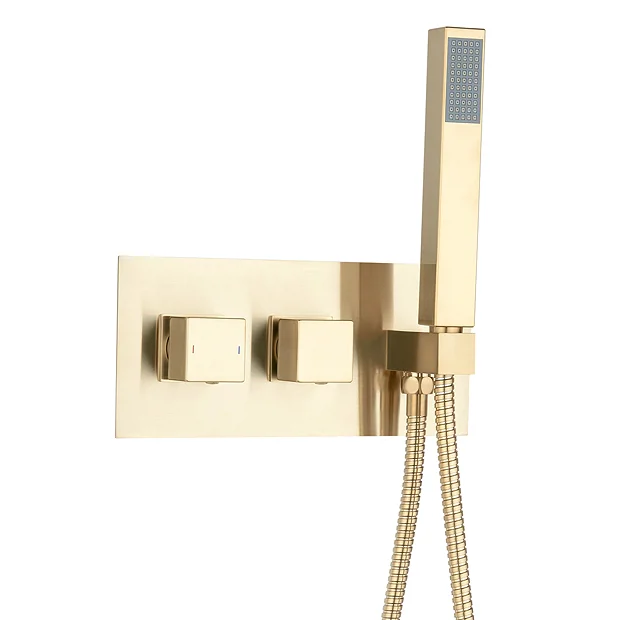

Arezzo Brushed Brass Modern Concealed Thermostatic 2-Way Shower Valve with Square Handles & Rectangular Shower Handset

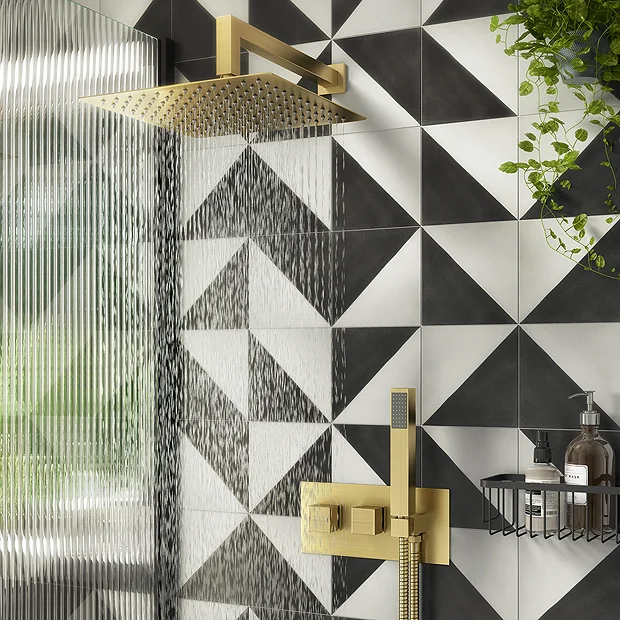

The Arezzo brushed brass modern concealed thermostatic control shower valve has been fitted with a handy two outlet valve and diverter, so you can switch water flow between a bath and shower, or between an overhead outlet and shower handset. You can also rest assured the clever thermostatic shower valve will always keep your water at a safe temperature. Features minimalist square handles this modern style shower valve is perfect for installing in a concealed arrangement.

Product Details

• Width: 265mm
• Height: 120mm
• Style: Modern
• Range: Arezzo
• Type: 2 Way Shower Diverter Valve with Handset
• Valve Handles: Square
• Colour/Finish: Brushed Brass
• Material: Brass Internals
• Concealed fitting
• Integrated parking bracket
• Rectangular backplate
• Wall mounted
• For use with 2 Outlets
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Two outlet valve with diverter to switch between bath and shower or two shower outlets
• Includes 1.5m hose and rectangular shower handset
• Shower handset dimensions:
• Height: 197mm
• Width: 30mm
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

All measurements are approximate

Images are for illustrative purposes only

Guarantee: 3 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
