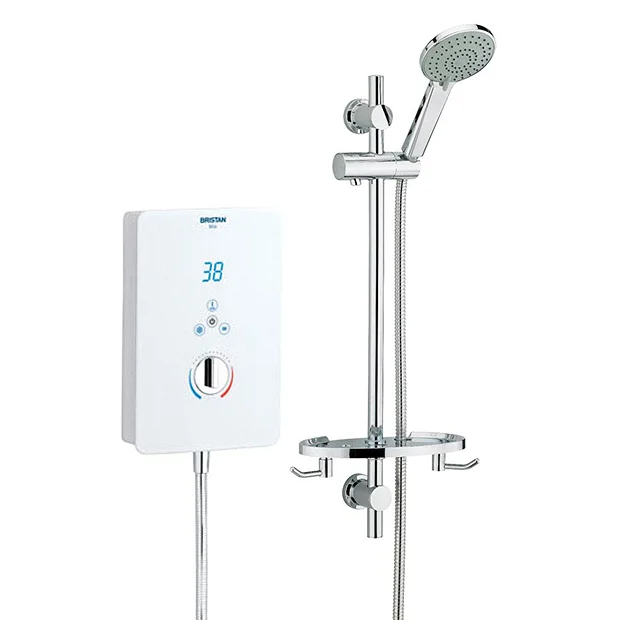

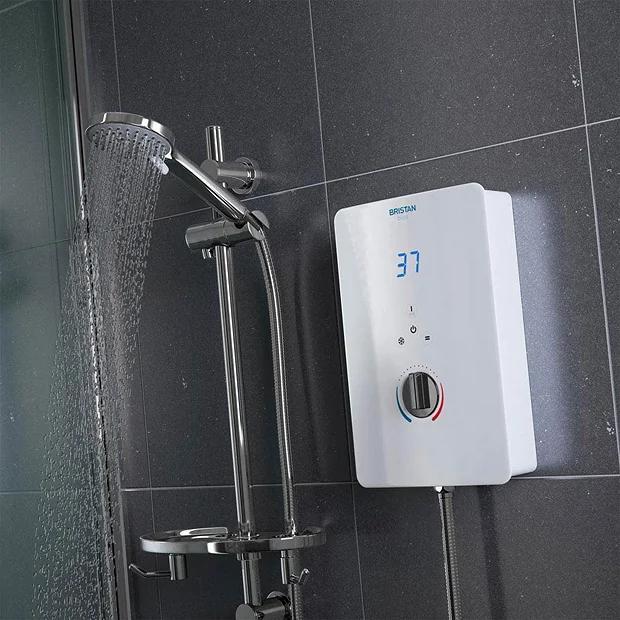

Bristan Bliss Electric Shower White

Bristan Bliss Electric Shower White

**New Features – Warm up mode, Phased shutdown mode indication, Performance indicator**

The new Bliss electric shower offers the perfect combination of style and practicality. An fully intuitive touch control power and flow selector, combined with a separate temperature dial, make it really easy to use, while its smooth flat surface makes easy to clean. As with the other showers in this range, its universal footprint will cover the space left by your old shower, and it also has five water and electric inlet points making it easy to install.

Product Details

• Finish: White
• Product Type: Contemporary
• Construction: Plastic (ABS)
• Supply: Suitable for mains cold feed only
• Inlet Connections: 15mm push fit, 5 directional options
• Outlet Connections: 1/2″ BSP male threaded
• Working Pressures: Min 0.7bar, Max 10.0bar
• Energy Rating: A

Additional Information

• Instantaneous electric shower drawing water direct from the mains supply; ideal for installations without stored hot water and second bathrooms.
• Digital display temperature indicator
• Consistent showering temperature is provided. The temperature stabilising device compensates for changes in the water pressure caused by other household fittings.
• Safety devices include thermal cut out & pressure relief.
• 3 Power settings. (Cold, Warm/Eco, Hot) and a separate rotary dial temperature control.
• On/Off is operated by Touch Button, ensuring temperature setting remains unaffected after each use.
• Safety warning letters in a display panel indicate low pressure and therefore the shower should be turned off until pressure resumes.
• The phased shut down feature ensures all hot water is flushed out of the shower after use prolonging the shower life. This ensures lime scale build up is kept to a minimum.
• Push fit swivel inlet elbow pipe connection, enabling plumbing from 5 different directions.
• This shower is supplied with an adjustable riser kit and 3 mode rub-clean handset.
• The riser has a built in soap tray & integral hose retainer.
• Adjustable riser comes complete with adjustable top/bottom brackets so ideal to cover existing riser holes and tile joints.
• Incorporates a temperature control device (TCD) that activates when the temperature is too high & the water inside the heater gets too hot. The TCD will switch off the power to the heating elements and once the unit cools down to a safe temperature, will come on again.

WRAS approved Product

Flow Rates (Litres per min)

Power 8.5kW – Flow Rate 4.5
Power 9.5kW – Flow Rate 5.1
Power 10.5kW – Flow Rate 5.6

Quoted as per European Water Label (EWL) scheme conditions:
Output = 42°C; Input = 15°C; Voltage = 240V
