Hudson Reed Tec Dual Exposed Thermostatic Shower Valve

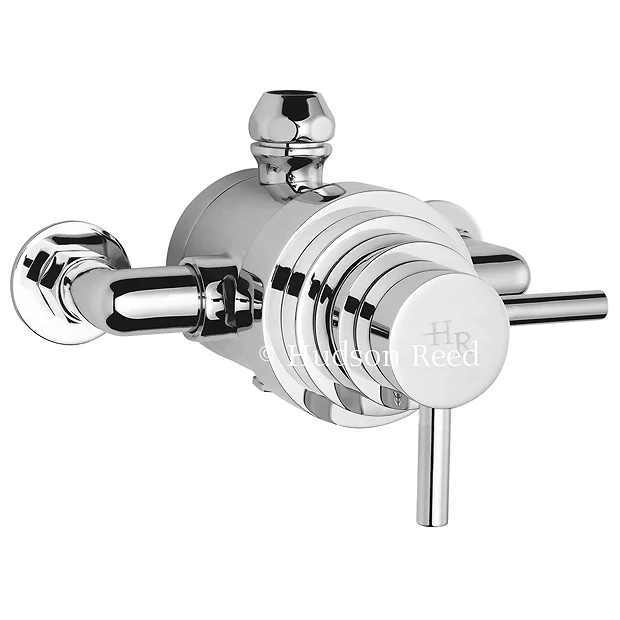

Hudson Reed Tec Dual Exposed Thermostatic Shower Valve – A3192E

The Tec dual provides a minimalist feel for the shower and is ideal for use with our luxury shower kits. Easy to operate – the front control adjusts the temperature and back control turns the water on and off. The dual exposed shower will operate one shower accessory –  a rigid riser kit or slide rail kit.

Product Details

• Type – Dual Exposed Shower Valve
• Material – Solid Brass
• Colour/Finish – Polished Chrome
• Suitable for all water systems
• Accurate flow control.
• Thermostatic control to +/- 2 to 3 &°C even if the water pressure fluctuates.
• Suitable for water systems between 0.1-4 bar pressure

• Full thermal protection to prevent scalding in the event of hot or cold water shut off.
• In the event of hot or cold water failure, the valve will shut down as per the relevant standard.
• The patented cartridge is highly resistant to calcium build up – even in hard water areas.
• Our valves are suitable for use with all systems: gravity fed, pumped, unvented high pressure or fully modulated combi-boilers.
• Excellent flow rates – even at low pressure.
• The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn’t need re-plumbing.
• Simply remove the cartridge, turn 180 degrees and replace.
• Outlet: 15 mm (1/2″ BSP)


Made in Britain and TMV2 approved – ensuring it has been tested to the highest standards.

WRAS approved Product

Guarantee – 20 Year

Flow Rates

0.1 Bar – 5.5 l/m
0.5 Bar – 14.5 l/m
1    Bar – 22 l/m
2    Bar – 30 l/m
3    Bar – 35 l/m
